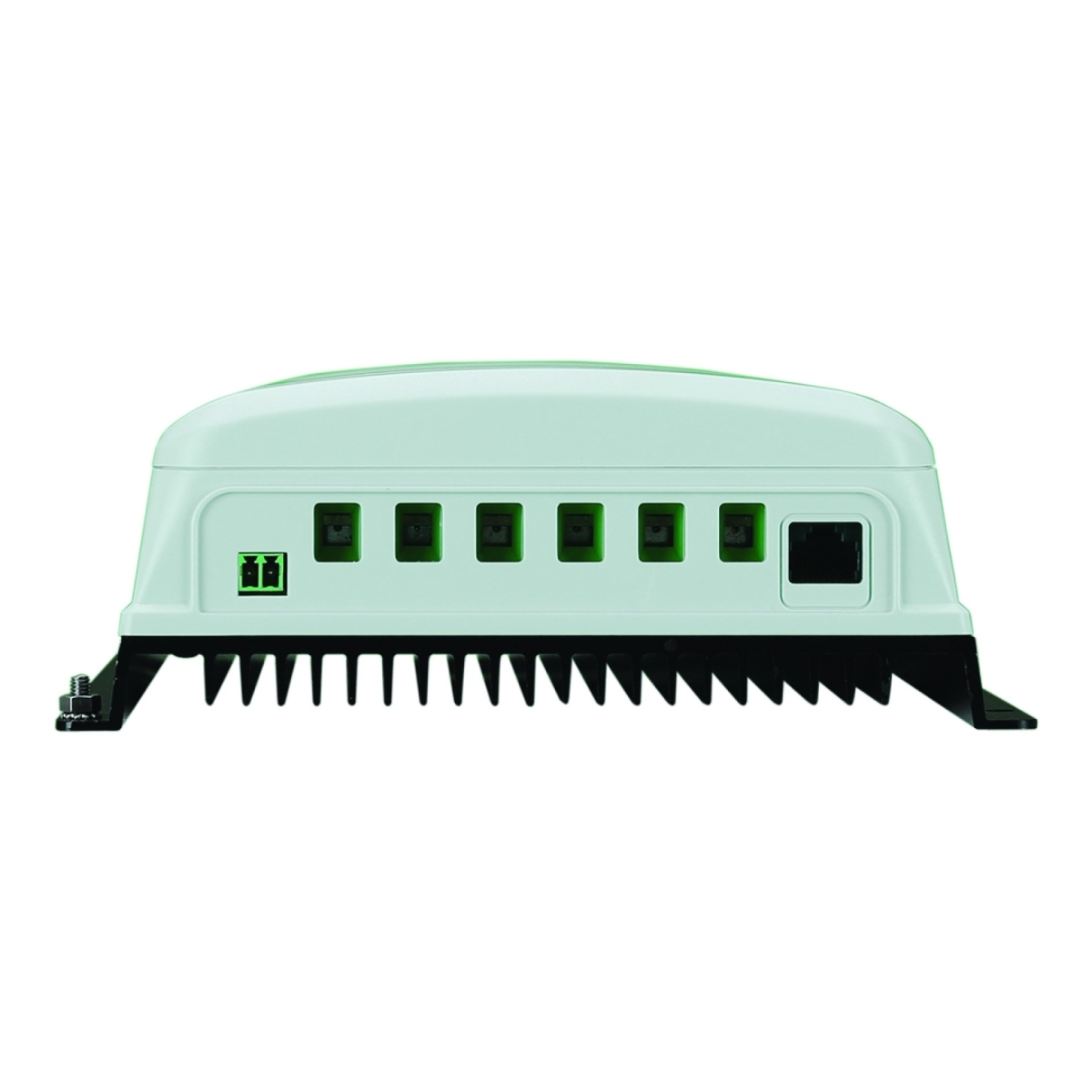

TommaTech® 10A-60V 12/24 MPPT Charge Controller

  • Advanced MPPT technology
  • Wide MPPT operating voltage range
  • Multiple load operating modes
  • Comprehensive electronic protection
  • Compatible with lead acid and lithium-ion batteries
  • Over temperature protection
  • Real-time energy statistics
  • Monitor and set the parameters via APP or PC software
  • IP32 Protection
  • Isolated with standard Modbus protocol RS485 communication port
  • Limit charging power & current over rated range


TommaTech® MPPT Series is a series of MPPT charge controllers developed for on-grid photovoltaic systems with optional LCD display units (XDB1 / XDS1 / XDS2). TommaTech® MPPT Series Charge Controllers apply intelligent algorithm to maximize the amount of energy generated from PV arrays and at the same time minimize power loss in a wide operating range, and thus operate at high efficiency. TommaTech® Series Controller has the option of automatic power reduction at high temperature as well as limit protection function in charging current and charging power. In this way, the stability of the system is taken to the next level.

Model Type
TT 1206n
Rated System Voltage
12 / 24V Auto
Rated Charge Current
Rated Discharge Current
Battery Input Voltage Range
8V ~ 32V
Maximum PV Open Circuit Voltage
MPPT Voltage Range
(Battery voltage +2v) ~ 36V
Maximum PV Input Power (W/V)
130W / 12V - 260W / 24V
Balancing Charge Voltage
Dry: 14.6V / watery: 14.8v / User: 17 ~ 9V
Upgrade Charge Voltage
Gel: 14.2v / Dry: 14.4V / Waterplay: 14.6V / User: 17 ~ 9V
Float Charge Voltage
Gel /Dry /Sulu:13.8 V /User: 17 ~ 9V
Reconnect Voltage (Low Voltage)
Gel /Dry /Sulu:12.6 V /User: 17 ~ 9V
Disconnect Voltage (Low Voltage)
Gel /Dry /Sulu:11.1 V /User: 17 ~ 9V
Self consumption
≤14MA (12V)
Discharge Circuit Voltage Drop
Temperature Coefficient
-3MV / oC / 2V (default)
Co -negative grounding
RS485 Interface
5VDC / 200MA (RJ45)
LCD Display Standby Time
60S (default)
Operating Environment Temperature Range
-25 oC ~ +50 oC (LCD);-30 oC ~ +50 oC (LCD screen without screen)
Recommended Cable Cross Section
12AWG (4mm2)
Connection Terminal
12AWG (4mm2)
Storage Temperature
-20 oC ~ +70 oc
Relative humidity
≤ 95 %, non -condensation
175 x 143 x 48mm
Mounting Size
120 x 134mm
Mounting Hole Size
Protection Class
