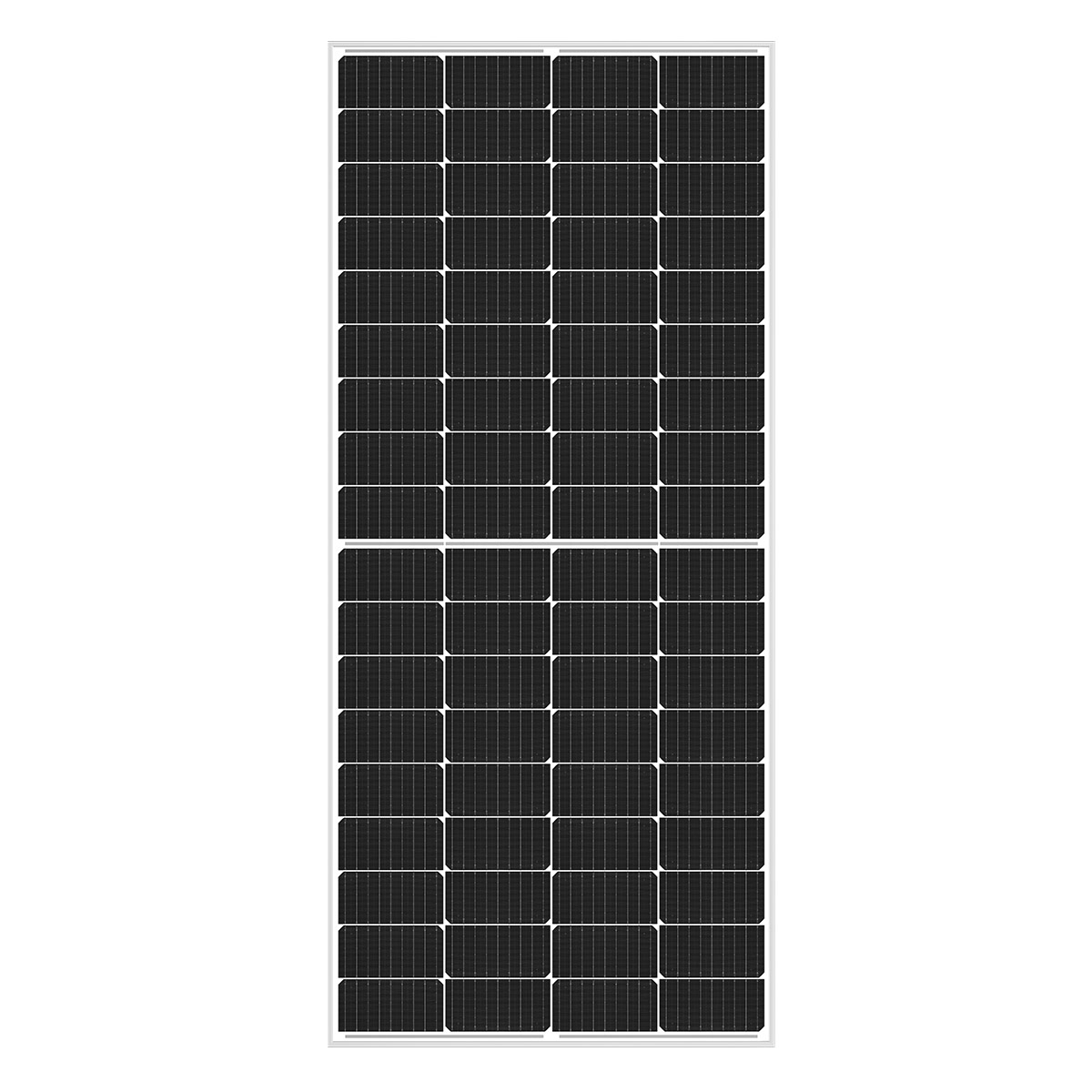

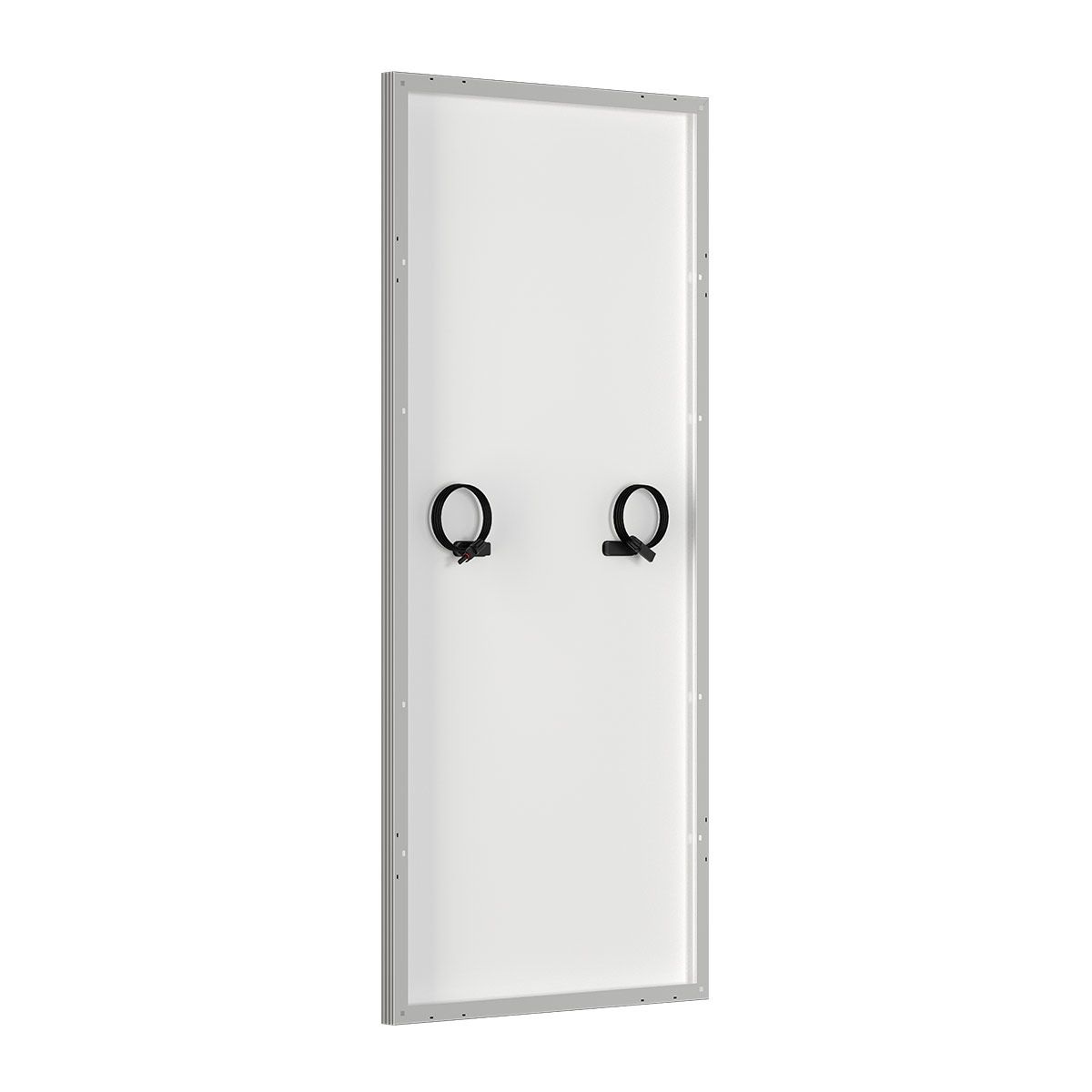

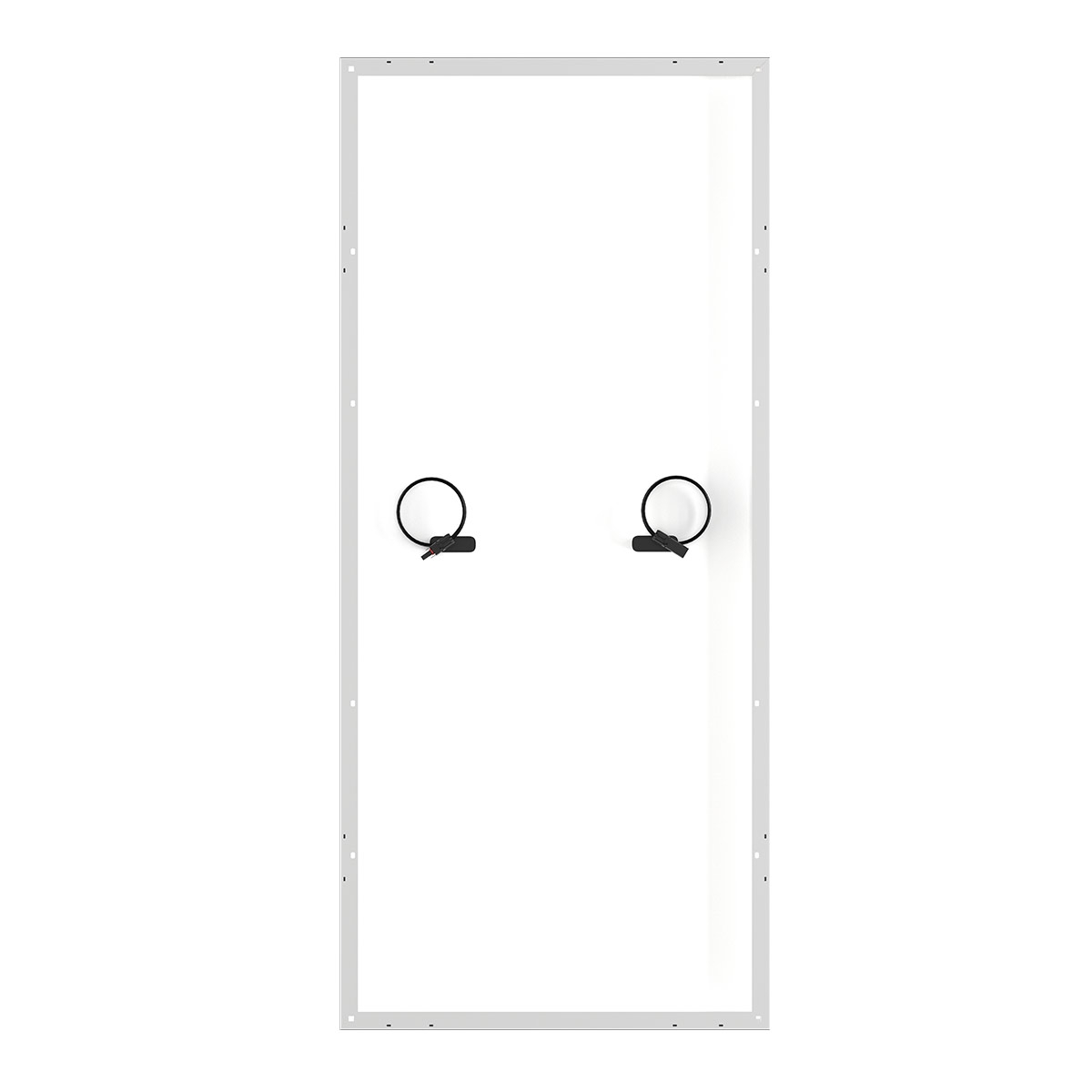

TommaTech® 230Wp M6 72PM HC-MB Solar Panel


  • High Conversion Efficiency
  • Self-Cleaning And Anti-Reflection Glass
  • Outstanding Low Irradiation Glass
  • Excellent Durability
  • 0~+5Wp Positive Power Tolerance
  • Easy Installation
  • 2 Years Product Warranty

EXCELLENT PERFORMANCE & DURABILITY



The multi busbar technology increases the efficiency of the solar panels with its new generation cell structure by minimizing both optical and electrical losses in the panel through reduced currents and smaller, round ribbons in the solar cells.

Combined with half-cut and monoPERC technology, 9 busbar cells create solar panels that produce more power than their competitors even in low light conditions. 9bb half-cut panels stand out with their incredible quality / price ratio.

High Conversion Efficiency: High panel efficiency to guarantee high power output

Self-Cleaning And Anti-Reflection Glass: Coating glass for self-cleaning reduces surface dust

Outstanding Low Irradiation Glass: Outstanding panel performance even in weak light conditions

Excellent Durability: Wind load up to 2400 Pa, Snow load up to 5400 Pa

0~+5Wp Positive Power Tolerance

Easy Installation

2 Years Product Warranty

Maximum Power (Pmax)
230 WP
Maximum Power Voltage (Vmp)
21.2
Maximum Power Current (Imp)
10,85
Open Circuit Voltage (Voc)
24,66
Short Circuit Current (Isc)
11,42
Operating Temperature Range
-40 ~ +85 ° C
Weight
13
voltage (v)
12 V
Cell Size (mm)
166 x 83
Number of Cells (pcs)
72 (4x18)
Panel Dimensions (mm)
706x1588x30
Junction Box Protection Class
IP68
Solar Glass
3.2mm Low Iron, Tempered Glass
Frame
Eloksal coated aluminum
Cable
4mm²
Cable Length
900mm
Temperature Coefficient (Isc)
0.050%/° C
Temperature Coefficient (Voc)
-0.304%/° C
Temperature Coefficient (Pmax)
-0.360%/° C
Technical Document
