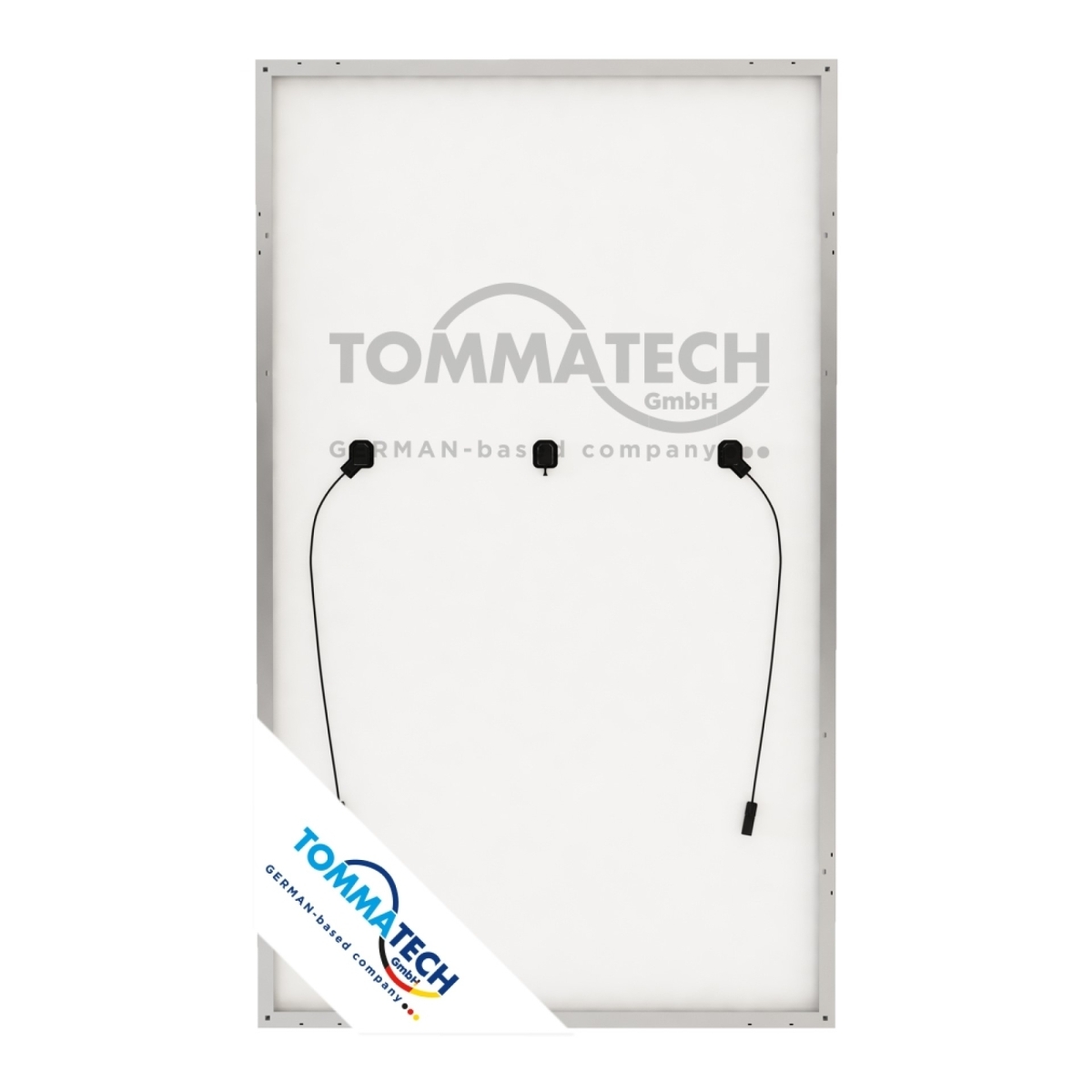

TommaTech® 360Wp M6 120PM HC-MB Solar Panel


  • High Conversion Efficiency
  • Self-Cleaning And Anti-Reflection Glass
  • Outstanding Low Irradiation Glass
  • Excellent Durability
  • 0~+5Wp Positive Power Tolerance
  • Easy Installation
  • 15 Years Product Warranty
  • 30 Years Performance Warranty
Technical Document

EXCELLENT PERFORMANCE & DURABILITY



The multi busbar technology increases the efficiency of the solar panels with its new generation cell structure by minimizing both optical and electrical losses in the panel through reduced currents and smaller, round ribbons in the solar cells.

Combined with half-cut and monoPERC technology, 9 busbar cells create solar panels that produce more power than their competitors even in low light conditions. 9bb half-cut panels stand out with their incredible quality / price ratio.

High Conversion Efficiency: High panel efficiency to guarantee high power output

Self-Cleaning And Anti-Reflection Glass: Coating glass for self-cleaning reduces surface dust

Outstanding Low Irradiation Glass: Outstanding panel performance even in weak light conditions

Excellent Durability: Wind load up to 2400 Pa, Snow load up to 5400 Pa

0~+5Wp Positive Power Tolerance

Easy Installation

15 Years Product Warranty

30 Years Performance Warranty

Easy Installation Easy Installation
0~+5Wp Positive Power Tolerance 0~+5Wp Positive Power Tolerance
Excellent Durability Excellent Durability
Outstanding Low Irradiation Glass Outstanding Low Irradiation Glass
Self-Cleaning And Anti-Reflection Glass Self-Cleaning And Anti-Reflection Glass
High Conversion Efficiency High Conversion Efficiency

Technical Details

Model Type
TT360 120PM-HC
Maximum Power (Pmax)
360 Wp
Module Efficiency
360 Wp 19.70
Maximum Power Voltage (Vmp)
33.90
Maximum Power Voltage (Vmp)
10.62
Open Circuit Voltage (Voc)
40.50
Short Circuit Current (Isc)
11.35
Power Tolerance
0~+5W
Max. System Rated Voltage
1500V DC
Operating Temperature Range
-40 ~ +85°C
Security Class
C
Max. Series Fuse Current
20A
Weight
20.3
Cell Size (mm)
166x83
Number of Cells (pcs)
120 (20x6)
Panel Size
1756x1039x30
Max. Wind / Snow Load Resistance (Pa)
2400/5400
Junction Box Protection Class
IP68
Temperature Coefficient (Isc)
0.050%/°C
Temperature Coefficient (Voc)
-0.304%/°C
Temperature Coefficient (Pmax)
-0.360%/°C
Junction Box Cable Length
350-1200
