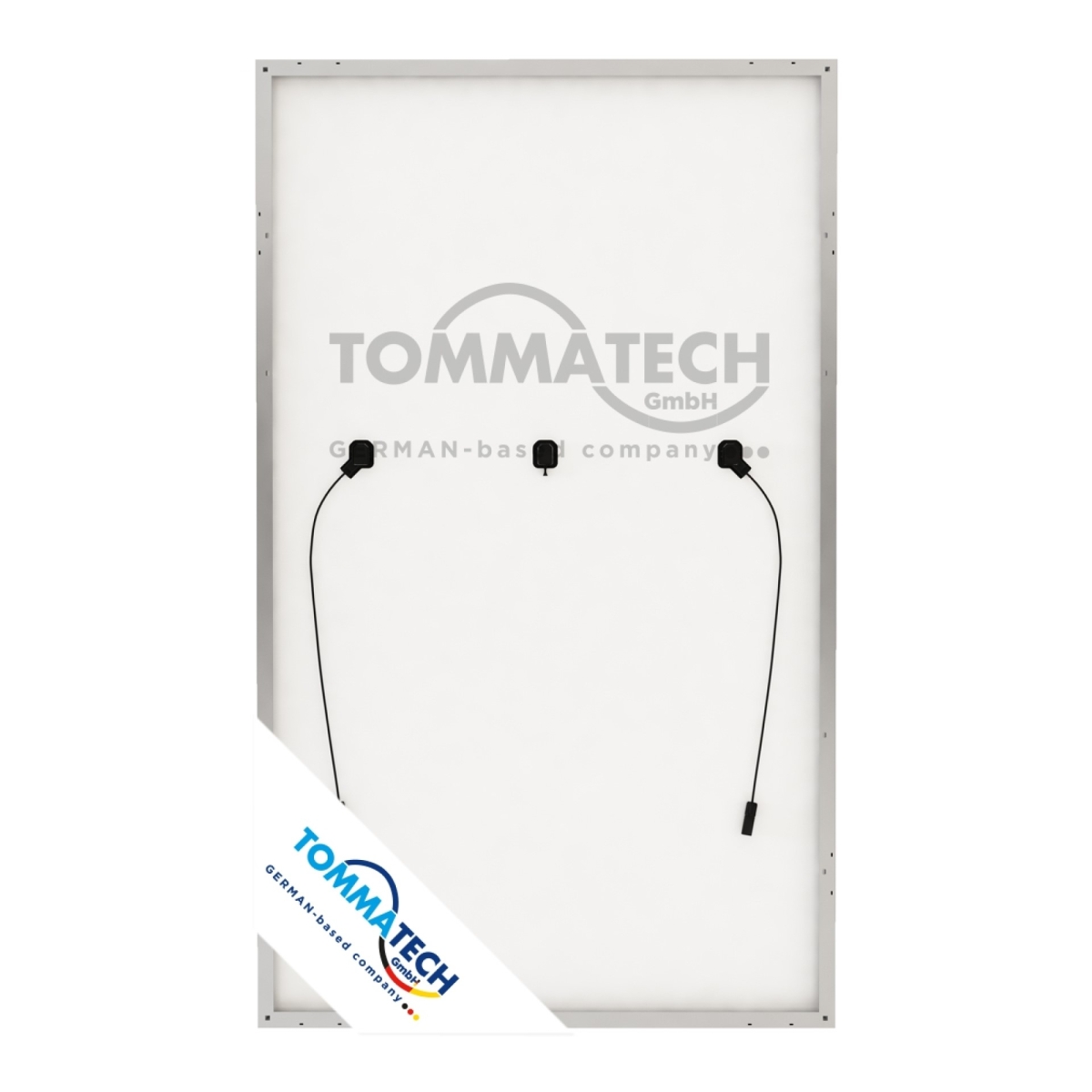

TommaTech® 375Wp M6 120PM HC-MB Solar Panel


  • High Conversion Efficiency
  • Self-Cleaning And Anti-Reflection Glass
  • Outstanding Low Irradiation Glass
  • Excellent Durability
  • 0~+5Wp Positive Power Tolerance
  • Easy Installation
  • 15 Years Product Warranty
  • 30 Years Performance Warranty

EXCELLENT PERFORMANCE & DURABILITY



The multi busbar technology increases the efficiency of the solar panels with its new generation cell structure by minimizing both optical and electrical losses in the panel through reduced currents and smaller, round ribbons in the solar cells.

Combined with half-cut and monoPERC technology, 9 busbar cells create solar panels that produce more power than their competitors even in low light conditions. 9bb half-cut panels stand out with their incredible quality / price ratio.

High Conversion Efficiency: High panel efficiency to guarantee high power output

Self-Cleaning And Anti-Reflection Glass: Coating glass for self-cleaning reduces surface dust

Outstanding Low Irradiation Glass: Outstanding panel performance even in weak light conditions

Excellent Durability: Wind load up to 2400 Pa, Snow load up to 5400 Pa

0~+5Wp Positive Power Tolerance

Easy Installation

15 Years Product Warranty

30 Years Performance Warranty

Model Type
TT375-120pm
Maximum Power (Pmax)
375 WP
Module Efficiency
20.6
Maximum Power Voltage (Vmp)
34,5
Maximum Power Current (Imp)
10,87
Open Circuit Voltage (Voc)
41,1
Short Circuit Current (Isc)
11,57
Power Tolerance
0 ~+5 W
Maximum System Voltage
1000V DC / 1500V DC
Operating Temperature Range
-40 ~+85 ° C
Security Class
C
Max. Series Fuse Rating
20a
Weight
20,3kg
Cell Size (mm)
166 x 83mm
Number of Cells (pcs)
120 (12 x 10)
Panel Dimensions (mm)
1756 x 1039 x 35mm
Max. Wind / Snow Load (Pa)
2400 /5400
Junction Box Protection Class
IP67 / IP68
Temperature Coefficient (Isc)
0.050%/° C
Temperature Coefficient (Voc)
-0.304%/° C
Temperature Coefficient (Pmax)
-0.36%/° C
Junction Box Cable Length(mm)
350-1200
Technical Document
