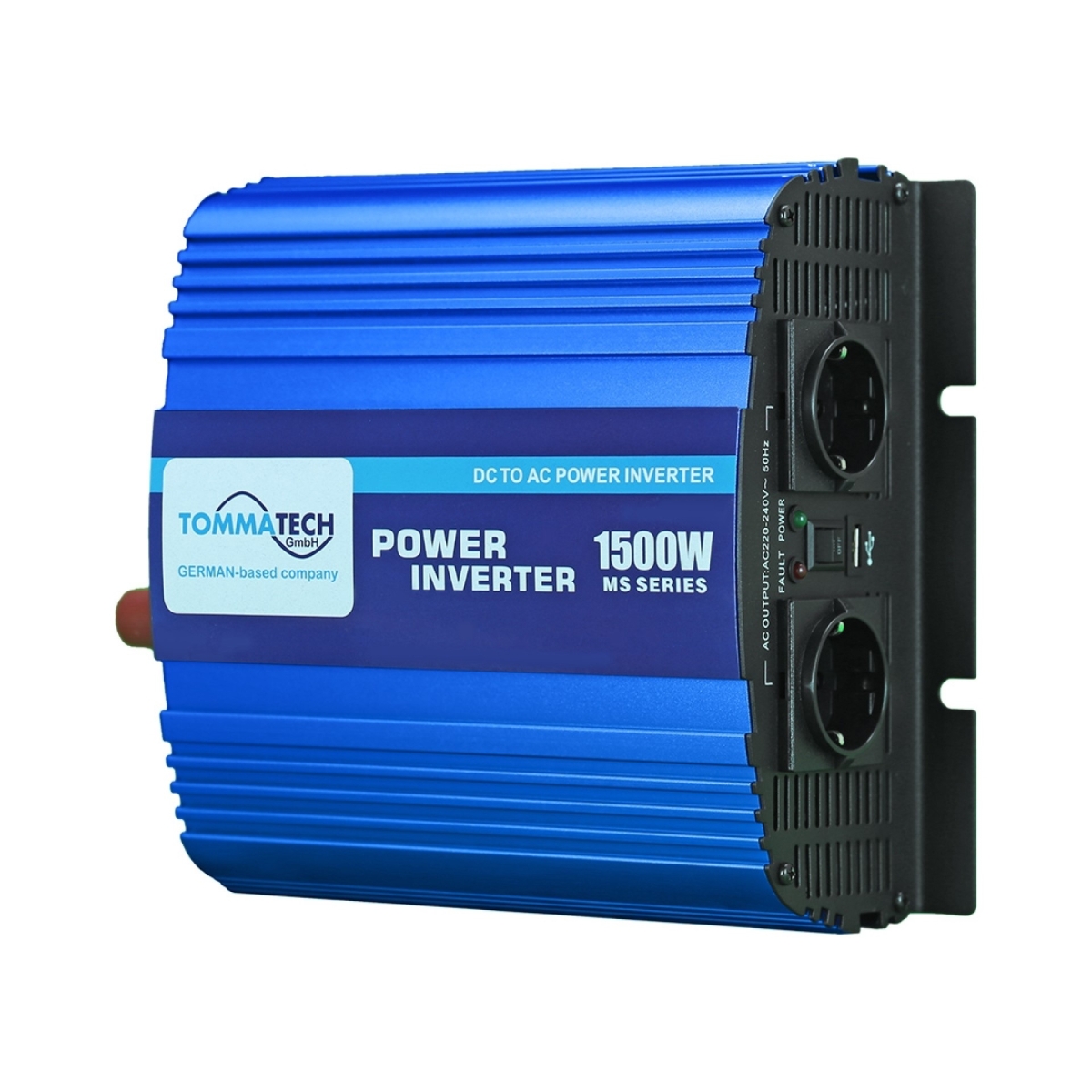

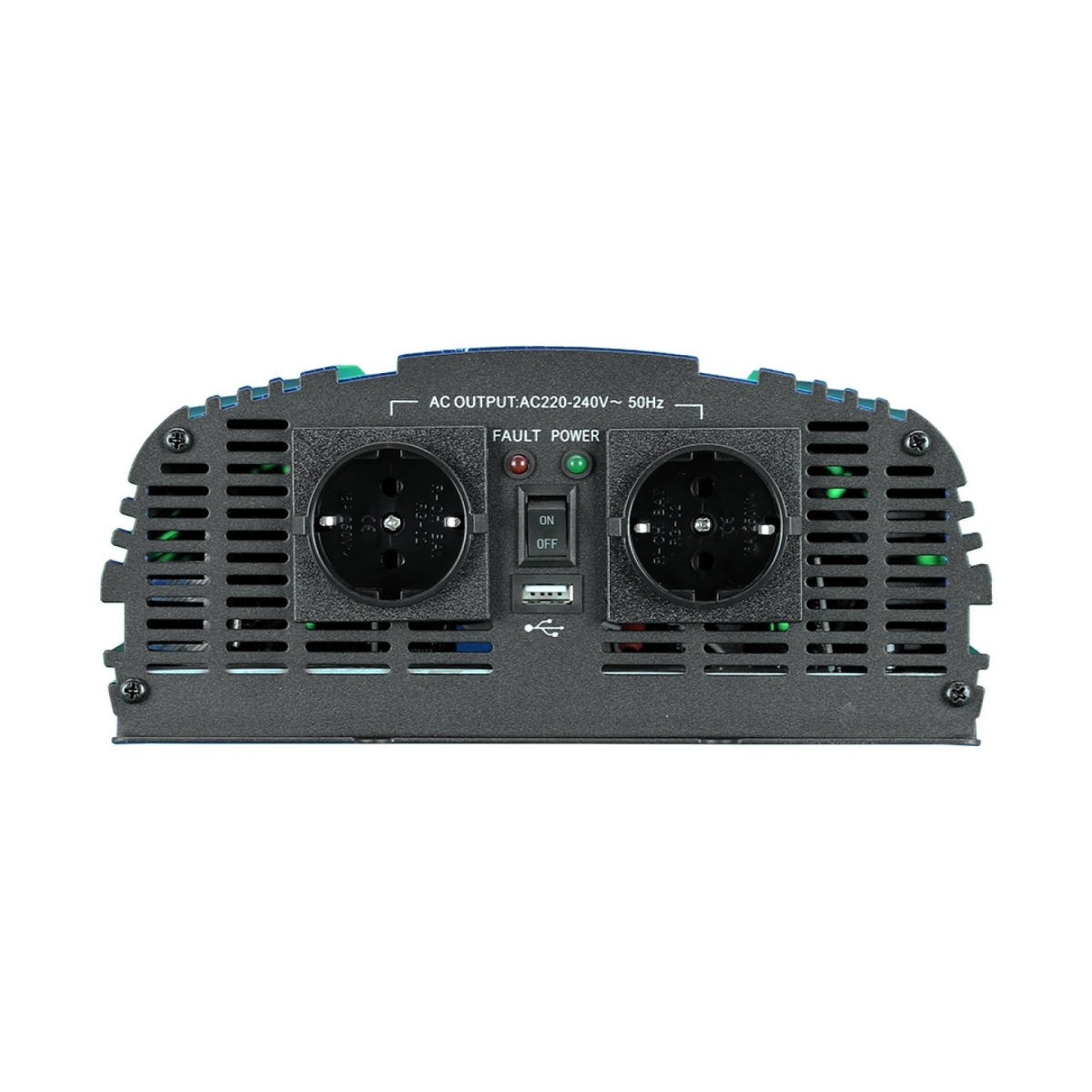

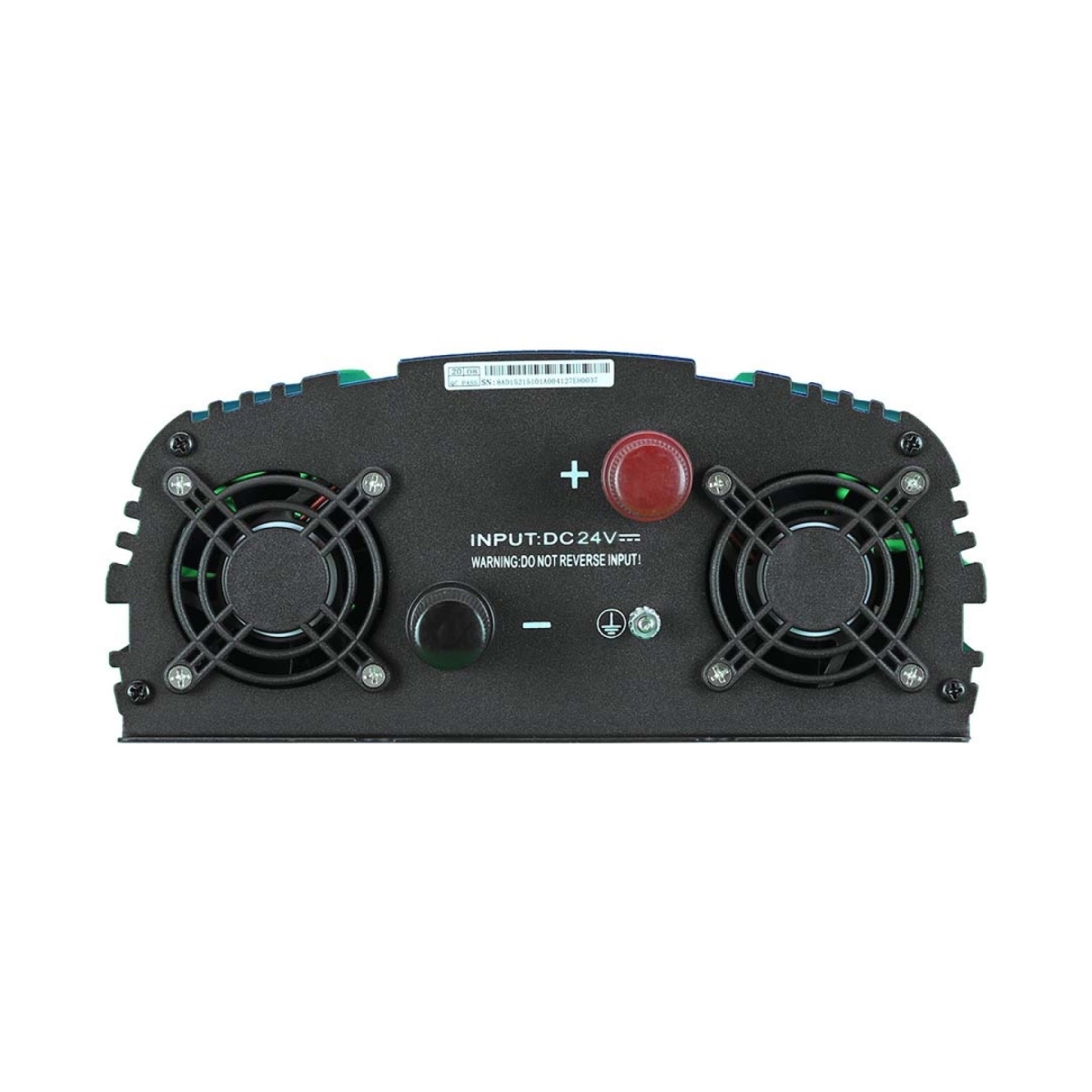

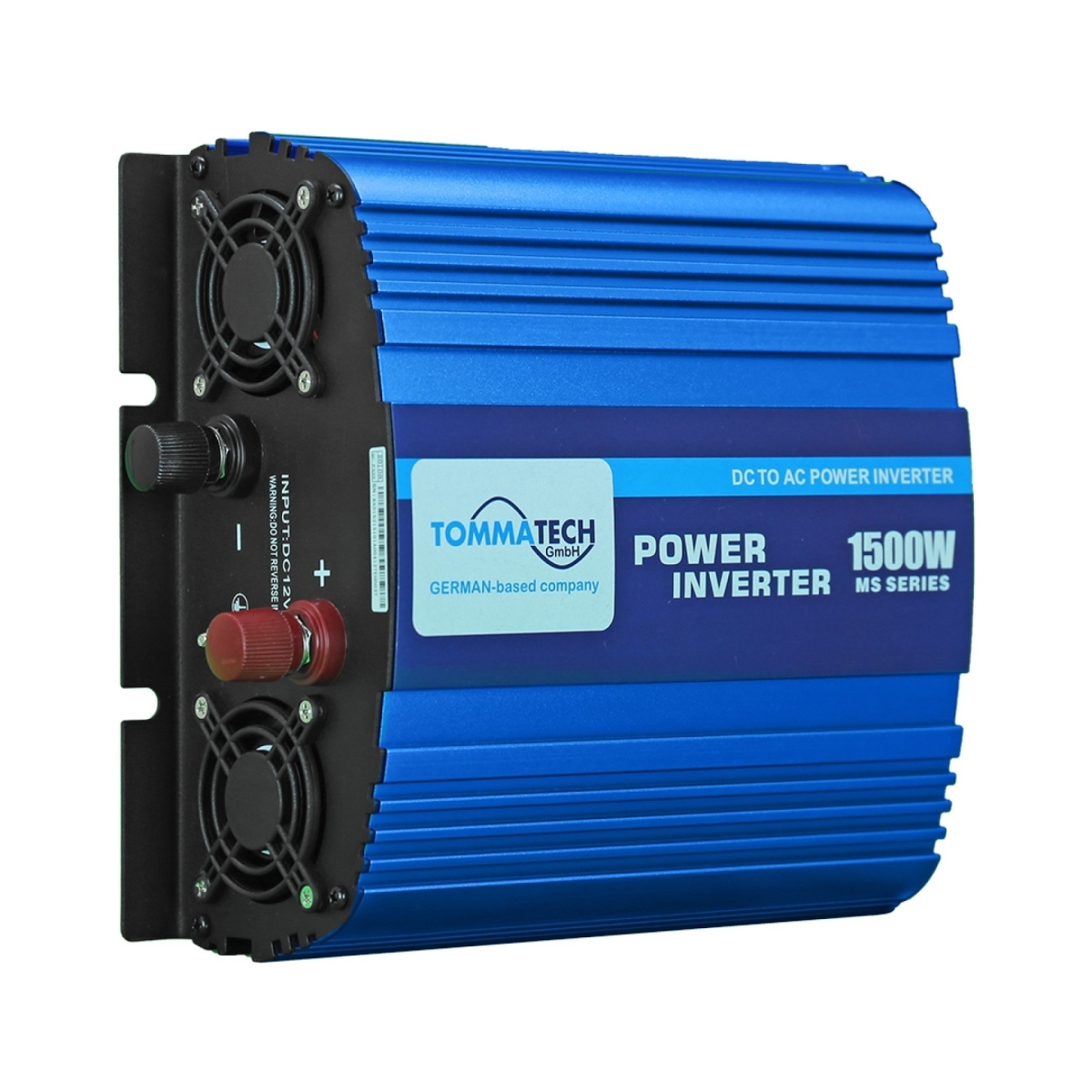

TommaTech® MS-1500 24V Modified Sine Inverter


  • Built-in USB output port.
  • Easy-to-use compact design with quality components.
  • Low battery alarm.
  • Modified sine output wave type suitable for most electronic loads.
  • Low voltage alarm and shutdown.
  • Over voltage, overload and over temperature protection.
  • Short circuit and reverse polarity protection.
  • Slow start feature.
  • Earthing protection.

TommaTech® Modified Sine Inverter Series



TommaTech® Modified Sine Wave Inverter Series is a modified wave sine type inverter for DC/AC power conversion. It is compatible with your devices with a power rating of up to 2000W. It is perfect for users who need a simple and economical inverter with user-friendly installation. TommaTech® Modified Wave Sine Inverters convert 12/24 and 48V DC voltage to 220V AC voltage and offer it for use. The aluminum used in the body design provides durability and maximum heat dissipation.

Model Type
MS-1500 24V
Maximum Power
1500W
Frequency range
50 / 60hz ± 3
AC Voltage Regulation (Battery Mode)
± 10%
Efficiency (Peak)
≥90%
Waveform
Modified Sinus Wave
Depth x Width x Height
27 x 23 x 10cm
Net weight
2900G
Relative humidity
20% ~ 90% relative humidity (non -condensation)
Operating temperature
0 ~ 30 ℃ = @ 100% load; 40 ℃ = @50% load
Storage Temperature
-30 ~ +70 ℃ / -22 ~ +158 ℉, 10 ~ 95% rh
AC Voltage
230V
AC Voltage Range
220-240V
Low Voltage Alarm
22 ± 1V
Low Voltage Shutdown
19 ± 1V
Over Voltage
30 ± 1V
Replaceable Fuse
15A*6
E-mark
Compatibility with EN60950, EN61558-1-2
Surge Power
3000W
LVD
Compatibility with EN61000-4-2, 3
EMS Immunity
Compatibility with EN55022 Chass B, 72 /245 / Cee, 95/64 / CE
EMI Conduction & Radiation
I / P-O / P: 100M OHMS / 500VDC / 25/70% RH
Insulation Resistance
-20 ℃ ~ +50 ℃
Temperature Factor
10% ~ 90% Rh relative humidity (non -condensation)
Ground
Yes
Soft Start
Yes, 3 ~ 5s
Reverse Load Protection
Insurance protection
Short Circuit Protection
Closing, Restarting
Extreme Temperature Control
Closing output power, automatic restart
Overload
Closing output power, automatic restart
Reset Voltage after L.V.S
11.5 ~ 12V
DC Coupler
600mm DC lighter cable, battery DC cable
Voltage Range
19 ~ 32V
Cooling fan
First of all, working / temperature control with AC (optional)
LED Indicator
Green open, red closed or faulty
USB
5V 2.1a (optional)
No Load Current Draw
≤0.5a
