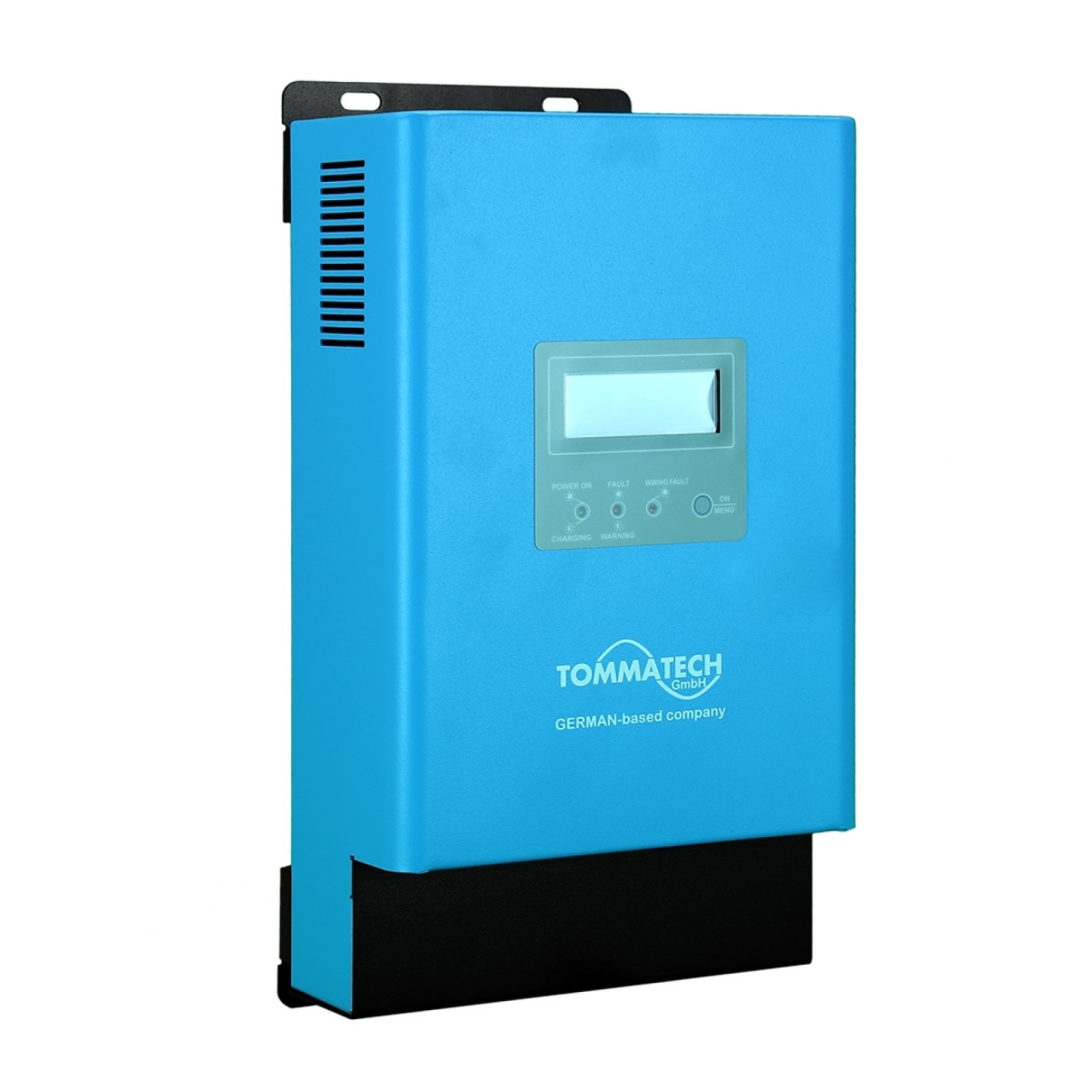

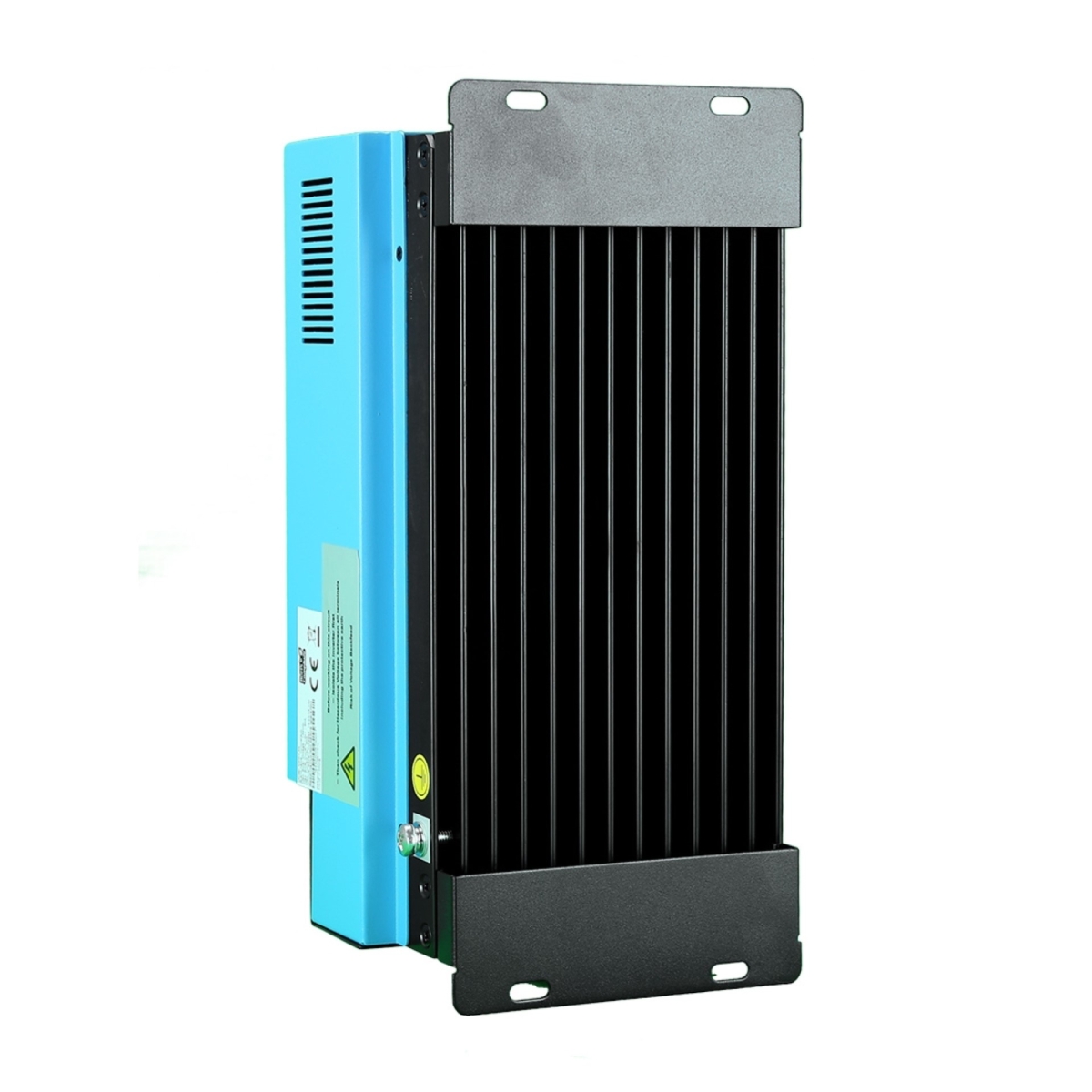

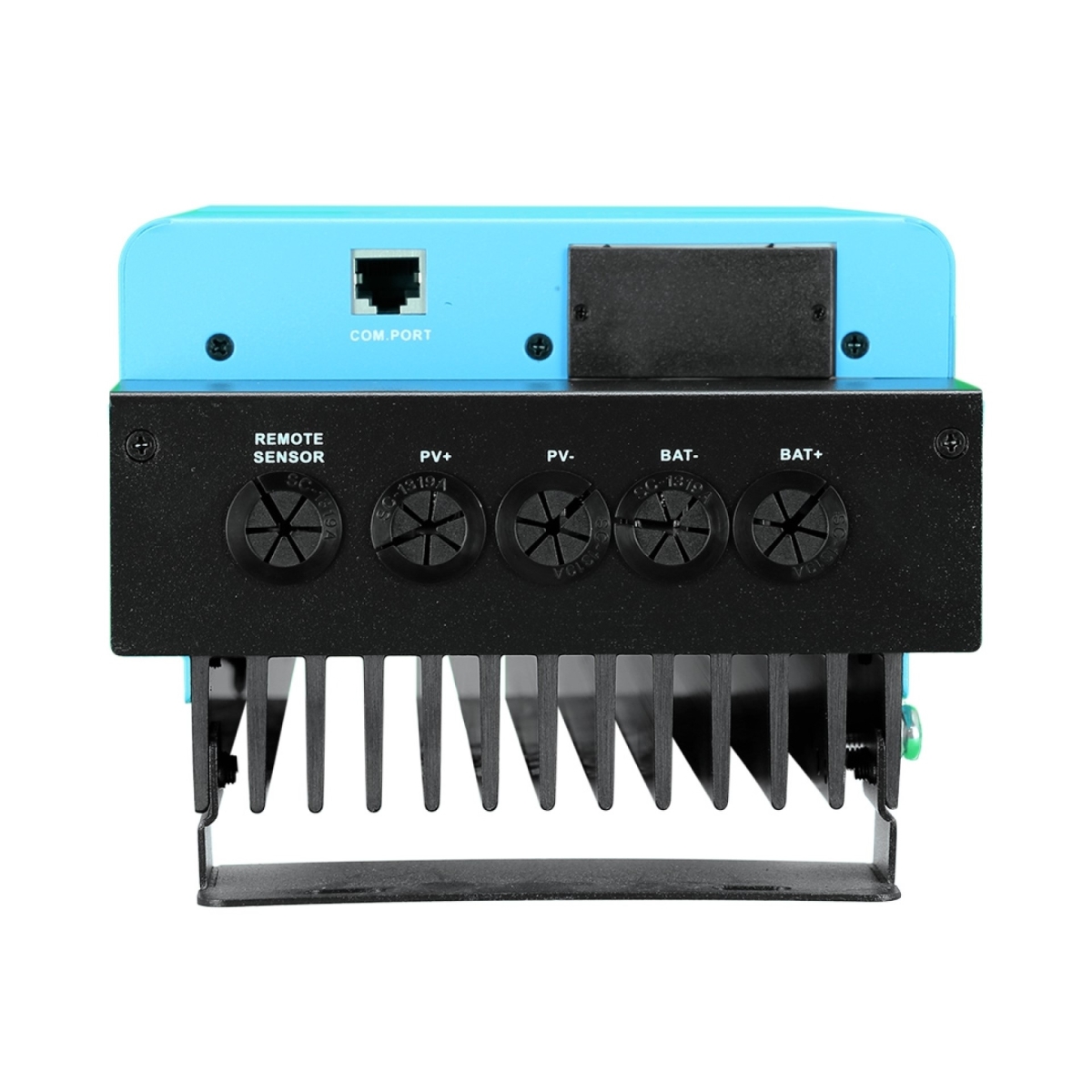

TommaTech 60A 12/24/48V MPPT Charge Controller

TommaTech 60A 12/24/48V MPPT Charge Controller

TommaTech® 60A 12/24/48V MPPT Charge Controller

  • Intelligent Maximum Power Point Tracking technology
  • Built-in DSP controller with high performance
  • Automatic battery voltage detection (Only for 600W and 3KW)
  • Battery temperature sensor (BTS) automatically provides temperature compensation (Only for 3KW) Product Features
  • Three-stage charging optimizes battery performance
  • Automatic load-detection
  • Multifunctional LCD displays detailed information
  • Reverse polarity protection for solar panel and battery
  • Overcharge and overload protection
  • Suitable for different battery types

MPPT CHARGE CONTROLLERS

Combined MPPT technology and DSP controller, SCC-MPPT will convert best voltage to charge battery based on various temperature. Compared to traditional solar charge controllers, it allows your solar panels to operate at their optimum power output voltage, providing higher exciency up to 98% with lower power loss. Integrated SCC-MPPT with inverter, solar panel, and external battery packs, it can become a standalone solar power system to generate green power for your home appliances. SCC-MPPT will convert solar power to charge external batteries and then provide power to home appliances via inverter.

Model Type
SCC-MPPT 3KW
Rated System Voltage
12/24/48V
MPPT Voltage Range
60V ~ 115V
Maximum PV Input Power (W/V)
800W - 1600W - 3200W / 145VDC
Battery Type
Closed lead acid, dry, gel
Charging Method
Three stages: installed, absorbing, variable
LCD Display
LCD indicator showing solar energy, load level, battery voltage / capacity, charging current and fault conditions
LED Display
Three indicators for sun, charging and load status
Operating Environment Temperature Range
0 ° C ~ 55 ° C
Storage Temperature
-15 ° C ~ 60 ° C
Relative humidity
5 %~ 95 %relative moisture, non -condensation
Altitude
0 ~ 3000 m
Weight
4.5kg
Dimension
315 x 165 x 128mm
Protection Class
IP31
Maximum Current
50a
Maximum Charge Current
60a
Maximum Efficiency
98%
Overload Protection
> 110 %: voice alarm
Overcharge Protection
Yes
Reverse Pole Protection
Yes
