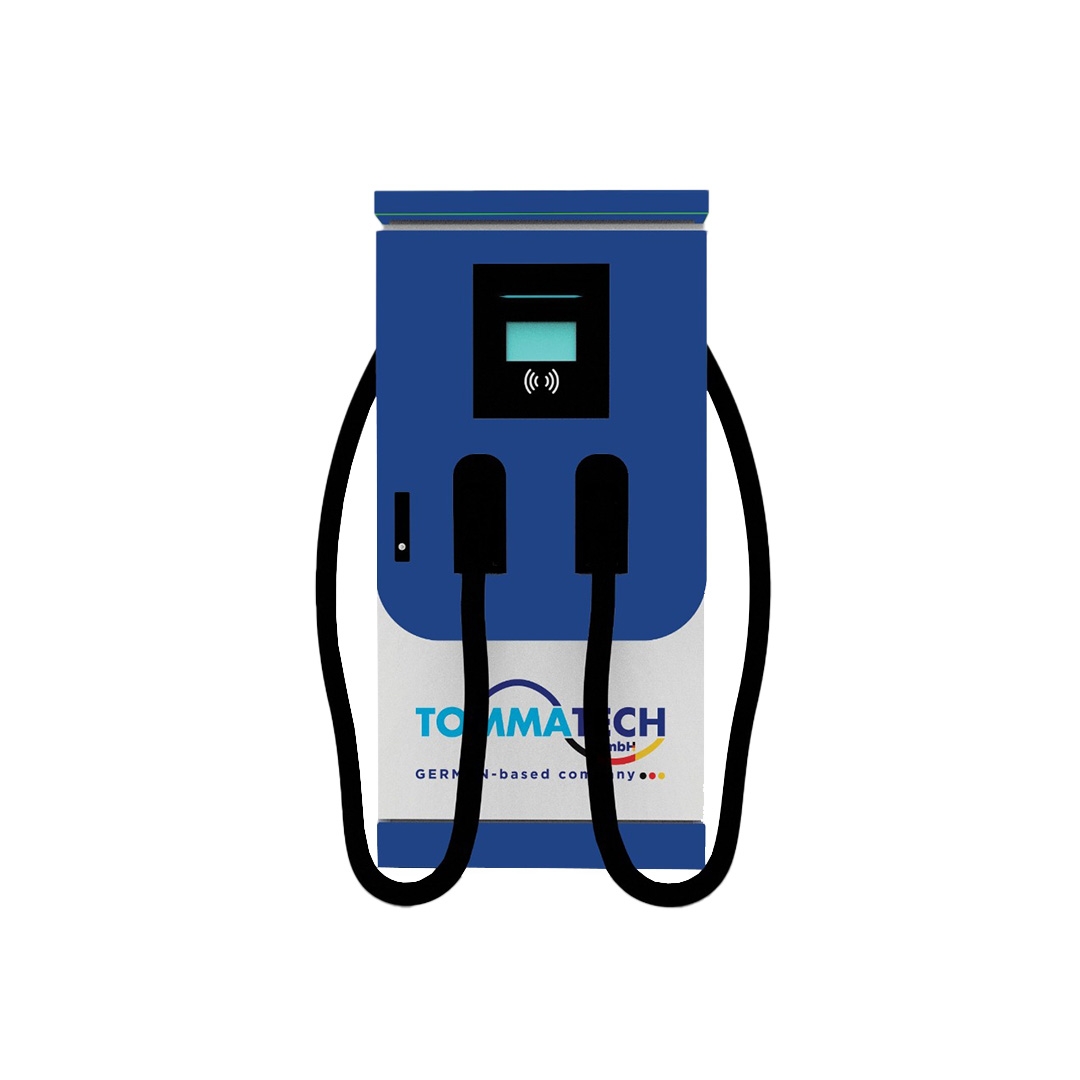

TommaTech Commercial 60kW DC Electric Vehicle Charging Station


  • Various power output options (60-180kW)
  • Double socket control system with isolated circuits
  • OCPP 1.6
  • Ethernet, Wi-Fi or 4G communication support
  • Real-time data display via Internet portal
  • 2 CCS2 Charging Sockets
  • Support to charge two vehicles at the same time
  • 7” LCD touch screen
  • Built-in RFID reader
  • Eco saving mode
  • All-weather powder-coated stainless steel enclosure
  • 5 meters long cable with CCS2 nozzle
  • 2 Years Product Warranty
AC Nominal Input Frequency [Hz]
50 /60
AC Nominal Output Power [kW]
60
Cable Length [m]
Default 5m, optional 6m/ 7m
Operating Temperature [°C]
-35 ~ 55
Working Altitude [m]
2000
Degree of Protection
IP54
Dimension (WxHxD) [mm]
850 x 740 x 1830
Input Voltage Range [VAC]
400 /380 ± 10%
device type
DC
output type
CCS2
Number of Outputs
2
Current [A]
150
Connector Type
3p + N + PE
Cellular Connectivity
GSM, 4G, LTE
Storage Temperature [°C]
-40 ~ 70
Connection Type
Internet access via 4G/3G/Ethernet (RJ45)
User Authentication
RFID, QR Code
User interface
7
Communication Protocol
OCPP 1.6
DC Output Voltage Range [VDC]
200-750
Technical Document
