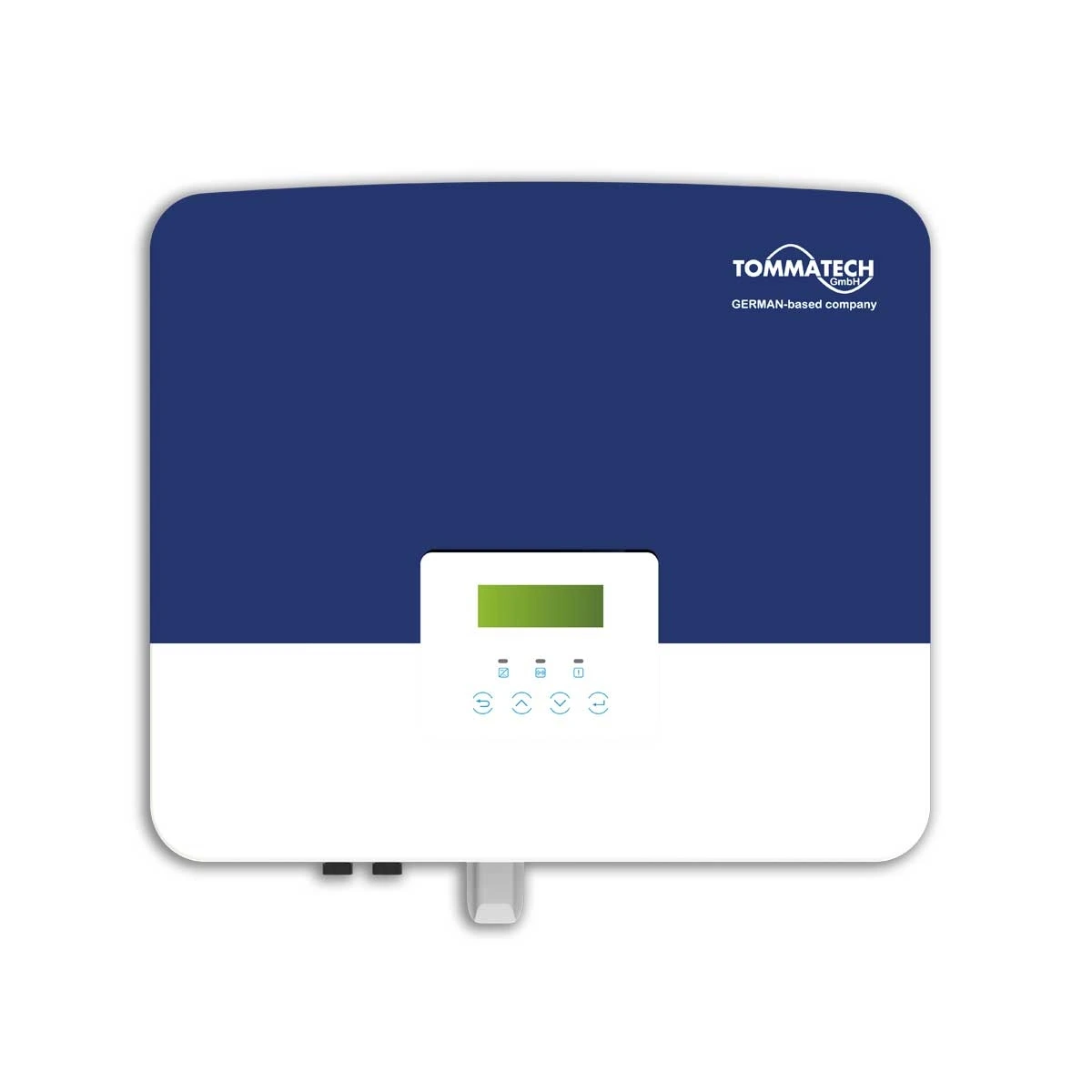

TommaTech Uno Hybrid K 6.0kW Single Phase Inverter


  • Low Start-Up Voltage
  • High Efficiency
  • Remote Monitoring
  • IP65 Rated
  • Hybrid Solution

TommaTech Uno Hybrid K 6.0kW Single Phase Inverter


TommaTech®'s Uno-Hybrid K Series single phase inverters with a maximum efficiency of 97.6%, advanced PV array power, lower start-up voltage of 90V and maximum PV string voltage of 600V are compatible with the leading lithium-ion battery solutions available on the market today. It offers plug and play installation and optimizes self-consumption through export control. There are five power options between 3.0 kW and 7.5 kW.

Maximum PV Array Input Power (Wp)
9000
Maximum PV Input Voltage [V]
600
Initial Output Voltage [V]
90
Rated Input Voltage [V]
360
MPP Voltage Range [V]
70~550
MPPT Number/ MPPT Array Input Number
2(2/1)
Maximum Input Current (MPPT A / (MPPT B) [A]
16/16
Maximum Short Circuit Current ((MPPT A / (MPPT B) [A]
18/18
Rated AC Output Power [W]
6000
Maximum AC Output Apparent Power [VA]
6600
Maximum AC Output Current [A]
28.6
Maximum AC Input Apparent Power [VA]
9200
Maximum AC Input Current [A]
40.0
Rated AC Voltage [V]
180~270
Nominal Mains Frequency/ Mains Frequency Range [Hz]
50/60
Displacement Power Factor
0.8 Önde ~0.8 Geride
THDi (Rated Power) [%]
<2
Battery Type
Lityum-İyon Batarya/ Kurşun-Asit Batarya
Battery Voltage Range [V]
80-480
Maximum Continuous Charge/Discharge Current [A]
30
Rated Output Power [W]
6000
Apparent Peak Power [VA]
7200,10dk.
Maximum Continuous Current [A]
26.1
Rated Voltage [V]; Frequency [Hz]
230; 50/60
Transition Time [ms]
<10
Maximum Efficiency [%]
97.6
European Efficiency [%]
97.0
Battery Charge/Discharge Efficiency [%]
97.0/97.0
Standby Consumption [W]
<3
Protection Class
IP65
Operating Temperature Range [°C]
-35~+60 (Verim Kaybı>45)
Maximum Working Height (Altitude) [m]
3000
Humidity [%]
0~100
Noise Emission [dB]
<30 <45
Storage Temperature [°C]
-40~+65
Dimensions (Width x Height x Depth) [mm]
482x417x181
Net Weight [kg]
24, 25
Cooling Method
Doğal Soğutma, Akıllı Soğutma
Communication Interface
CT/ Meter(Opsiyonel)/ Harici Kontrol RS485/ Wi-Fi / LAN Dongle (Opsiyonel)/ DRM USB Upgrade/ NTC
Security
EN/IEC62109-1/-2
EMC
EN61000-6-1/2/3/ 4; EN61000-3-2/3/11/12
